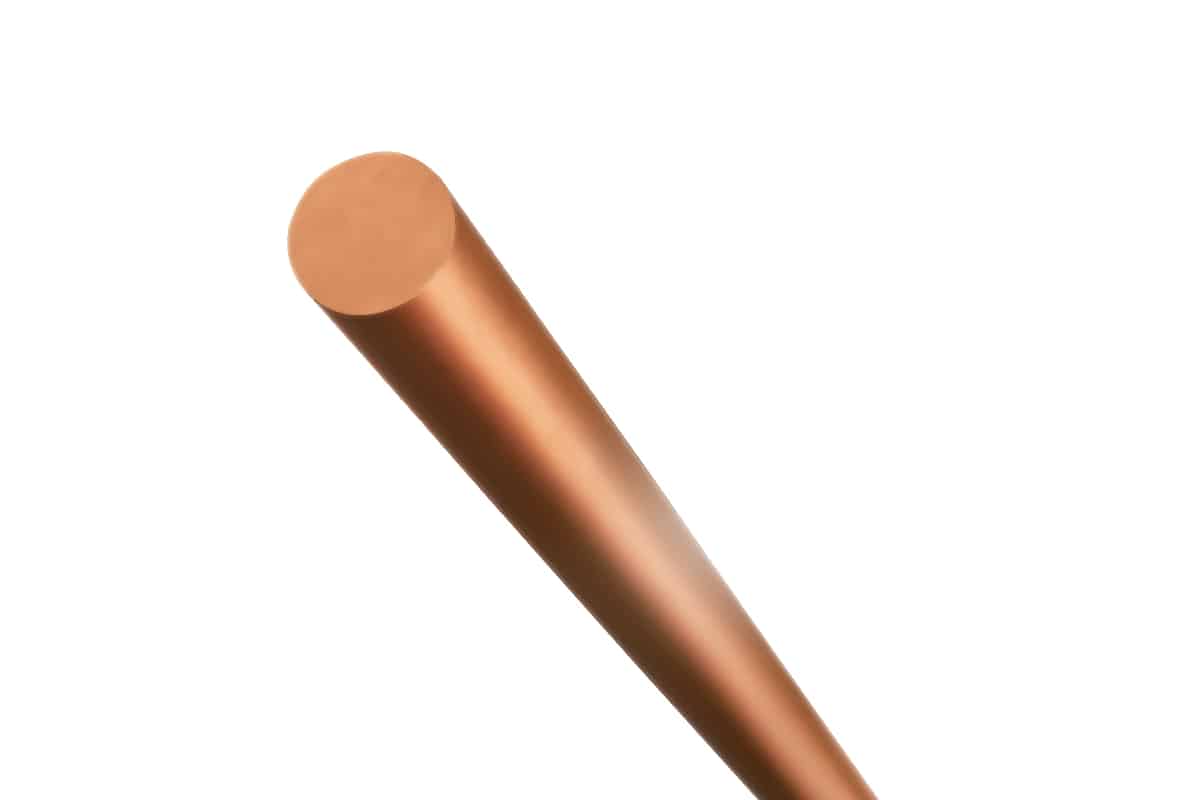

Copper Grounding Wire Solid or Stranded

Grounding Solution

INFO

Description

For grounding and Bonding as specified in the National Electrical Code. Also for use in overhead transmission & distribution applications.

Suitable for numerous other applications.

Applications

Bare Copper conductors are primarily used for grounding purposes as specified in the National Electrical Code.

Soft-drawn solid or stranded conductors are used for grounding connections in circuits and for grounding machinery or equipment. Hard-drawn conductors are applied in overhead transmission and distribution lines, as grounding connections in circuits, and for grounding machinery or equipment.

Catalogue

Download our catalog to access complete product information.

Specifications

ASTM B1

Standard Specification for Hard- Drawn Copper Wire

ASTM B2

Standard Specification for Medium Hard-Drawn Copper Wire

ASTM B3

Standard Specification for Soft or Annealed Copper Wire

ASTM B8

Standard Specification for Concentric-Lay-Stranded Copper Conductors, Hard, Medium-Hard, or Soft

Engineering Info

Conductor Soft bare copper Solid or Classes A or B stranding per ASTM B-3 and B-8. On request Hard-drawn and Medium Hard-drawn per ASTM B-1, B-2. Options Also available in tinned copper. Sizes Solid–14 AWG to 2 AWG Class A–4 AWG to 1000 kcmil Class B–6 AWG to 2000 kcmil Stranding Soft, Medium Hard- drawn or Hard-drawn copper wires concentrically stranded, consisting of one or more layers of wires helically wrapped around a central wire.
